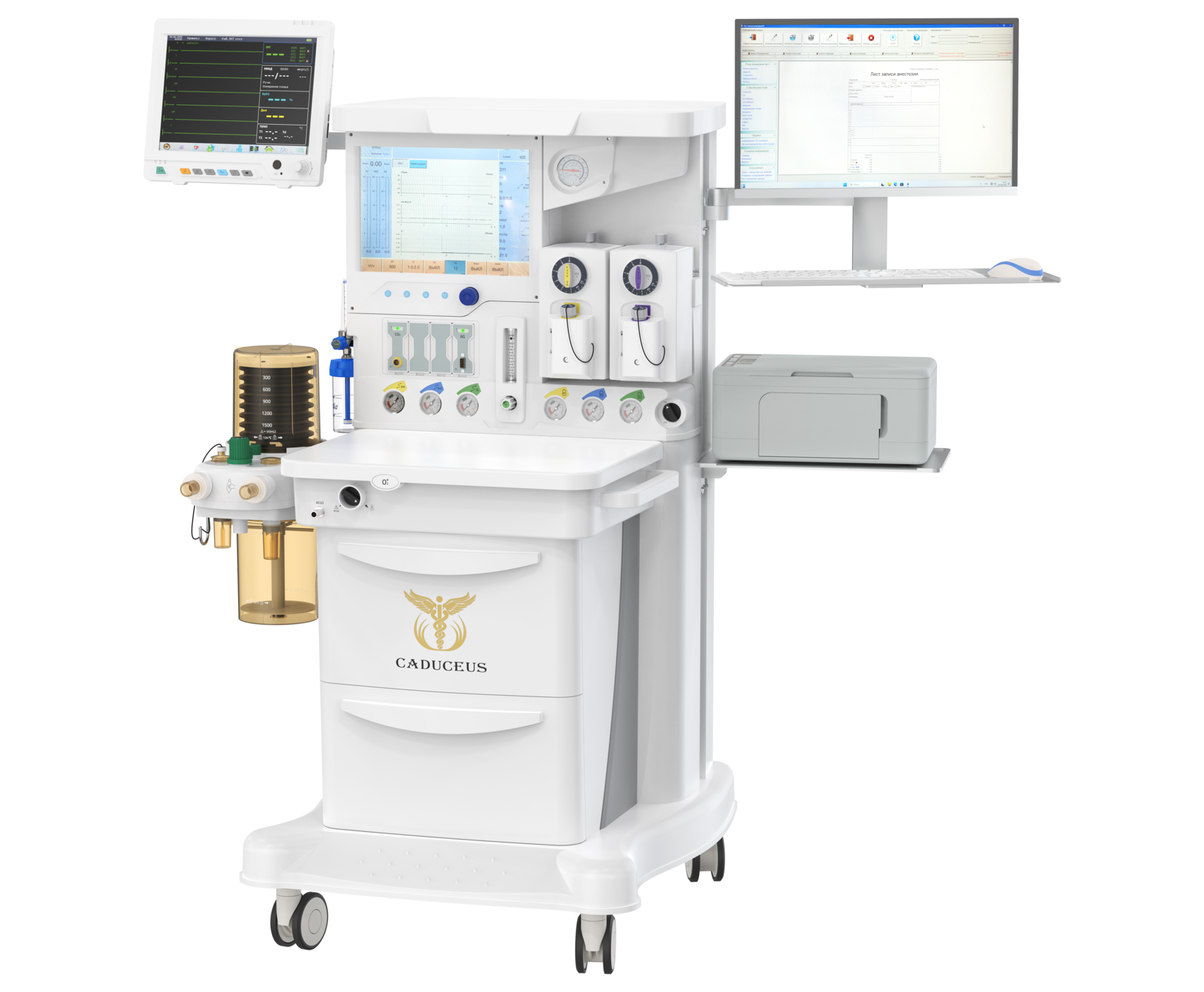

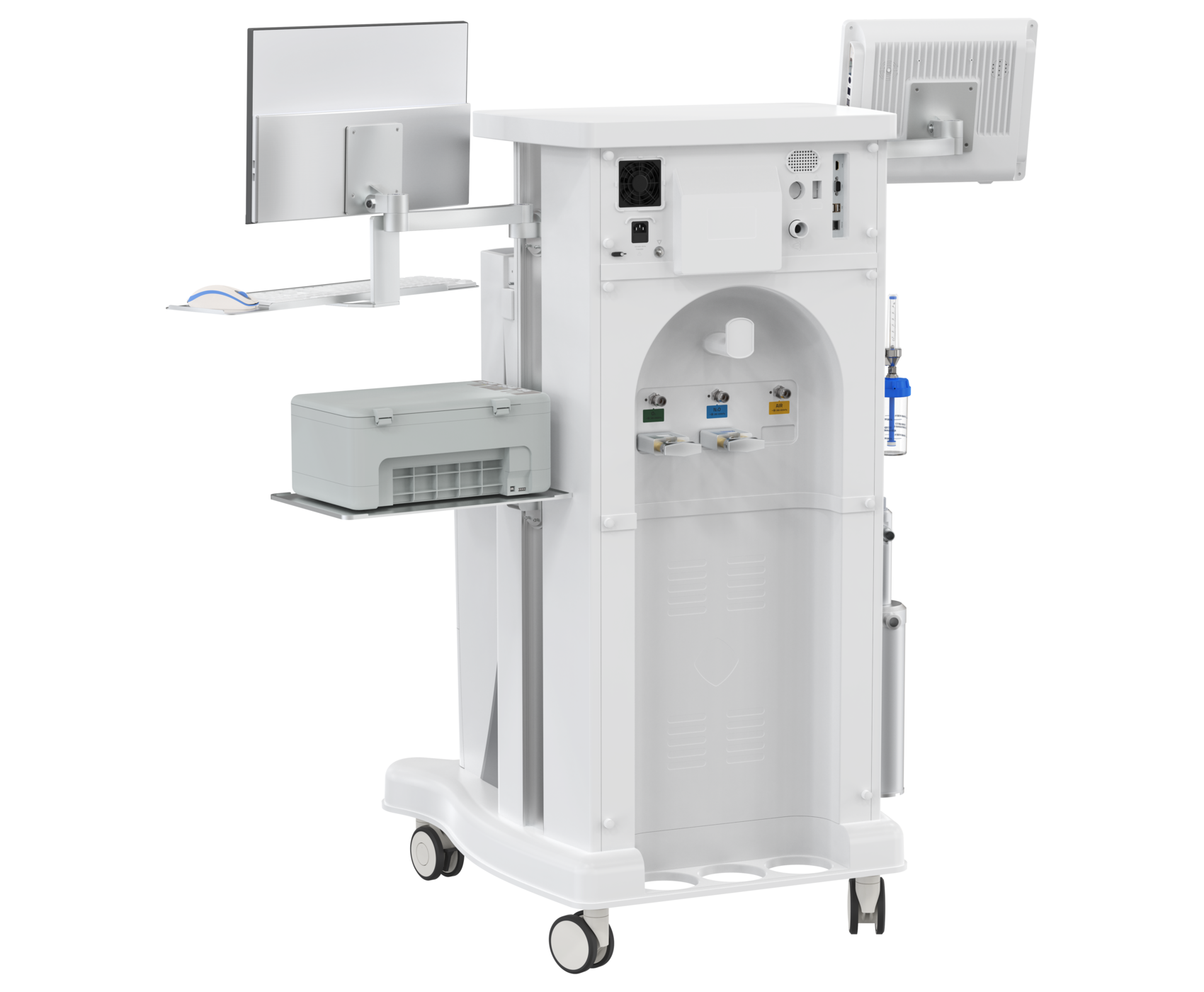

The anesthesia machine functions with various types of inhalation anesthetics, and modern settings allow you to accurately adjust the supply and concentration of gas, creating safe conditions for the patient. The modern protection system automatically stops the supply of nitrous oxide (N₂O) when the oxygen level (O₂) drops, limits airway pressure and removes exhaust gases. The graphical display clearly shows the main parameters and the dynamics of their changes, allowing you to quickly switch between operating modes and conveniently connect gas sources. Regular measurements of the main physiological parameters are carried out automatically, the information is available on the screen in real time.

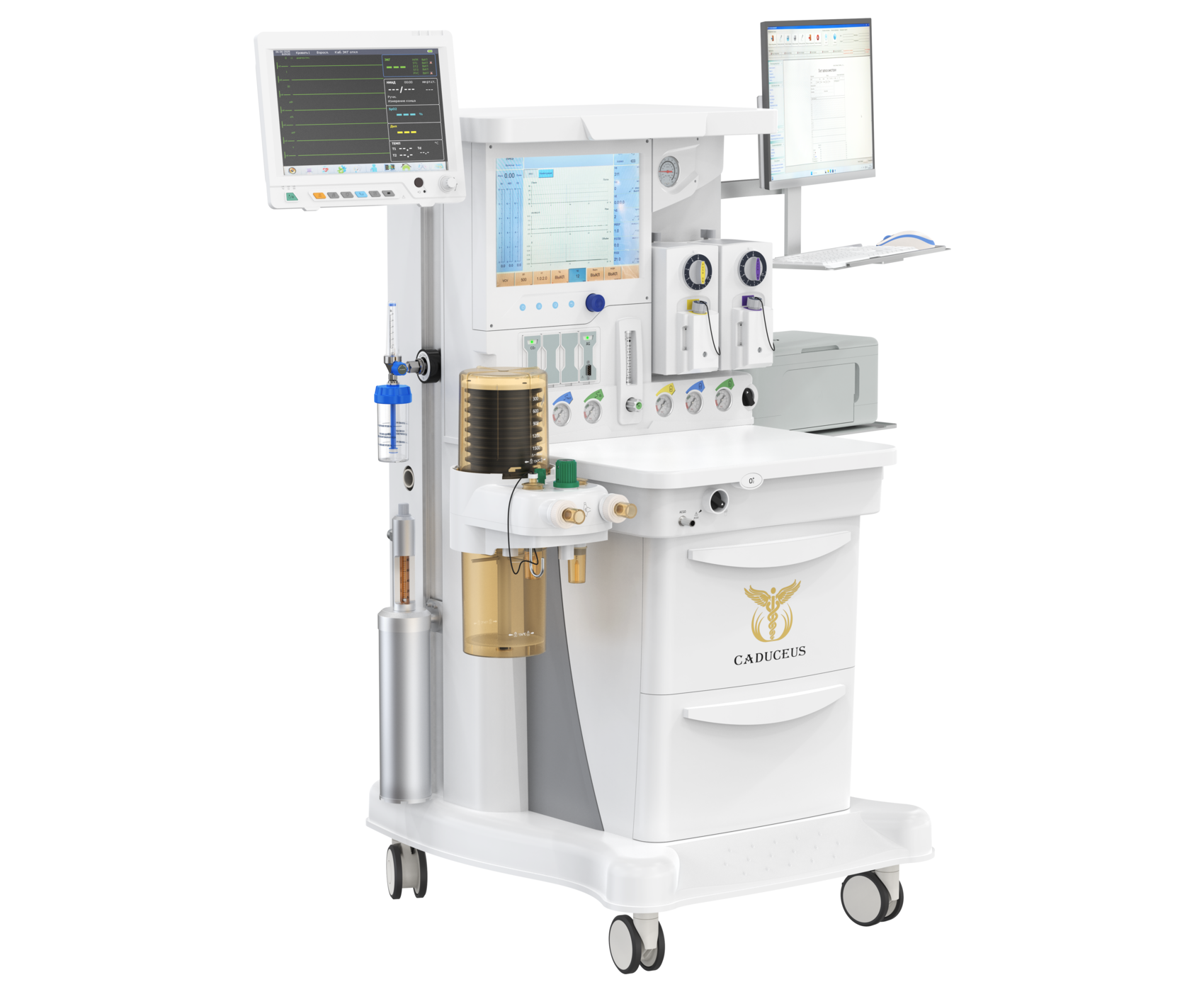

The CADUCEUS DEEP anesthesia machine supports various ventilation modes, including VCV (volume control), SIMV (synchronized intermittent mandatory ventilation), PCV (pressure control), as well as manual gas supply control (BAG).
The design of the anesthesia-respiratory apparatus is made of durable materials, designed for many years of operation, ensuring long-term reliability and minimal wear.
The CADUCEUS DEEP anesthesia system is a modern and powerful tool for anesthesiologists-resuscitators, providing convenient and reliable means to ensure high-quality pain relief and respiratory support, combining high efficiency, safety and practicality.
Specifications
| Dimensions (H×W×D) | 1400 × 850 × 700 mm (including breathing circuit) |
| Weight | < 65 kg (without vaporizers and cylinders) |
| Enclosure Protection Rating | IP21 |
| Patient Category | Adults, Pediatrics |
| Gas Supply | |
| Gas Sources | O₂, N₂O (Medical Grade), AIR |
| Nominal Working Pressure | 0.44 MPa (440 kPa) |
| Input Pressure Range | 0.28-0.60 MPa |
| Pressure Regulator Setting | 0.44 MPa (440 kPa) |
| Pressure Relief Valve | 780 kPa |
| Flowmeter | |
| Flowmeter Range | 6 Tubes: O₂ (2) 0.1-15 L/min, N₂O (2) 0.1-15 L/min, Air (2) 0.1-15 L/min |
| Flowmeter Accuracy | ±10% in the range from 10% of full scale or 300 ml/min to full scale |
| Outlet O₂ Concentration | ≥ 25% |
| O₂ Flush | 25-75 L/min |
| Vaporizer | |
| Supported Anesthetics | Isoflurane, Sevoflurane, Halothane, Enflurane, Desflurane |
| Concentration Ranges | Isoflurane: 0.2-5%, Sevoflurane: 0.2-8% |
| Flow Range | 0.2-15 L/min |
| Mounting Type | Selectatec and compatible |
| Ventilation Modes | VCV, PCV, PSV, SIMV-V, SIMV-P, SIMV-PPA-VC, MANUAL, A/C, STANDBY, PA-VC |
| Ventilation Parameters | |
| Respiratory Rate (RR) | 0-100 breaths/min |
| I:E Ratio | 4:1-1:8 (Adults), 2:1-1:8 (Pediatrics) |
| Tidal Volume (Vt) | 0.02-1.6 L (Adults: 0.25-1.6 L; Pediatrics: 0.02-0.3 L) |
| Minute Volume (MV) | 0-100 L/min |
| PEEP | 0-3.0 kPa (OFF, 3-30 cm H₂O) |
| Peak Pressure | -20-100 cm H₂O |
| Pressure Limit | 10-100 cm H₂O |
| Maximum Pressure (Relief) | < 6 kPa |
| Monitoring | |
| Display Type | Color TFT Touchscreen, 15 inch, 1024×768 |
| Waveform Display | Pressure (P), Flow (F), Volume (V), CO₂ (Optional) |
| Measured Tidal Volume | 0-3.0 L (±(4.0 ml + 15% of reading) for >50 ml) |
| Airway Pressure | 0-10.0 kPa (±(2 hPa + 4% of reading)) |
| FiO₂ | 15-100% (±(2.5% vol + 2.5% of gas concentration)) |
| Breathing System | |
| System Capacity | 3500 ml (including bellows assembly and CO₂ absorber) |
| CO₂ Absorber | 1500 ml / canister |
| System Compliance | 2.2 ml/cm H₂O |
| Inspiratory Resistance | 2 cm H₂O (at 30 L/min), 4 cm H₂O (at 60 L/min) |
| Expiratory Resistance | 2.5 cm H₂O (at 30 L/min), 5 cm H₂O (at 60 L/min) |
| Electrical Parameters | |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Input Power | 50 VA |
| Backup Battery | Lead-Acid 12V 4Ah, up to 180 min at +25°C |
| Fuses | Mains: RT1-20-1A×2; Backup Power: RT1-20-2A |
| Operating Conditions | |
| Temperature, Humidity, Pressure | +5°C to +40°C, ≤ 80% (non-condensing), 86-106 kPa |
| Storage Conditions | |
| Temperature, Humidity | -10°C to +40°C, ≤ 90% (non-condensing) |
