Cylinder filling stations

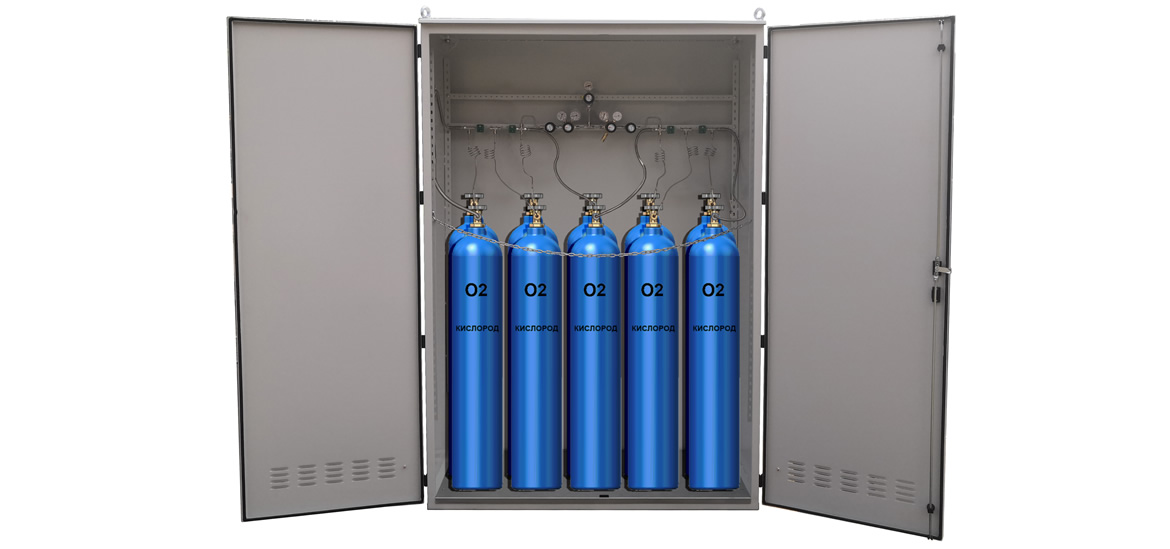

Газовые баллонные рампы

Cylinder filling stations

Cylinder solution is the oldest, the most proven and also the cheapest investment method how to arrange the medical gas supply. However its great disadvantage consists in a difficult handling with heavy cylinders and in a costly maintenance.

We supply cylinder sources with automatic, semi-automatic and manual switches. The designed flow is 15 m3/hr to 300 m3/hr.

This product is manufactured following the standard applicable to medical devices

The switching device used to connect 2 independent distribution sources  of high-pressure gas cylinders. By lowering the pressure in a battery, which is defined as a priority, it will automatically switch to the backup battery. This switch may be connected to a signaling panel, which transmit signal to the technical service staff that the bottle must be replaced in one of the battery.

Type

Inlet pressure, max. bar

Outlet pressure, max. bar

Workspace

Maximum capacity, m3 / h

QSLM 1200 LA

15,0

1,5

C2H2

40

QSLM 1200 MВ

80,0

10,0

CO2; N2O;

250

QSLM 1200 НВ

220,0

10,0

Ar; N2; He; H2; O2; CH4;

250

QSLM 1200 MC

80,0

25,0

CO2; N2O;

250

QSLM 1200 НС

220,0

25,0

Ar; N2; He; H2; O2; CH4;

250

Number of cylinders

2

3

4

5

6

7

8

9

10

11

12

Length mm

835

1135

1435

1735

2035

2335

2635

2935

3235

3535

3835

Gearboxes for medical gases conformity with technical regulations on the safety of machinery and equipment (Government Decree of 15.09.2009 №753).

WestMedGroup supplies various additional devices for gas supply systems.
