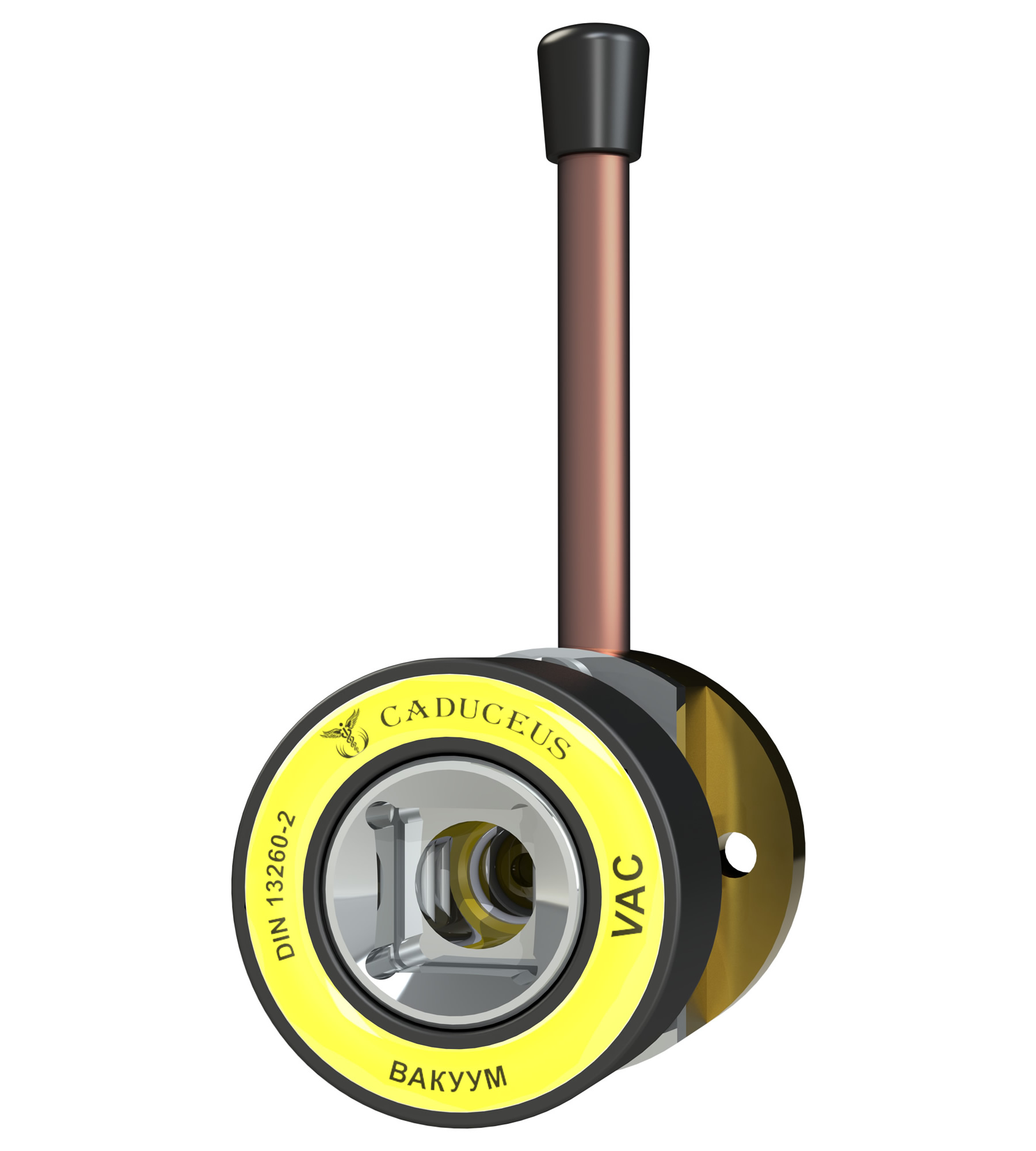

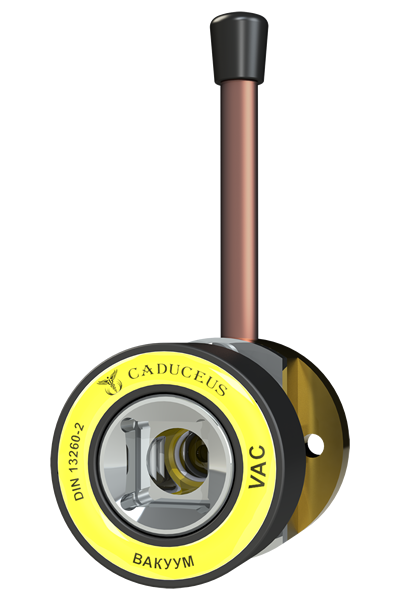

The Medical Gas Quick Connector is a medical gas valve designed to quickly and safely connect and disconnect two parts of the distribution network. When connected to the corresponding plug, a tight and strong joint is formed. In case of disconnection, it acts as an automatic shutter.
The connectors are produced in several versions, which differ in the way they are attached to the base plate and the way they are connected to the central distribution network.
Medical gas connectors are mutually irreplaceable for certain types of gas and are marked with different colors. A special plug for a specific type of medical gas must be plugged into the gas connector to form a functional solidity.Specifications

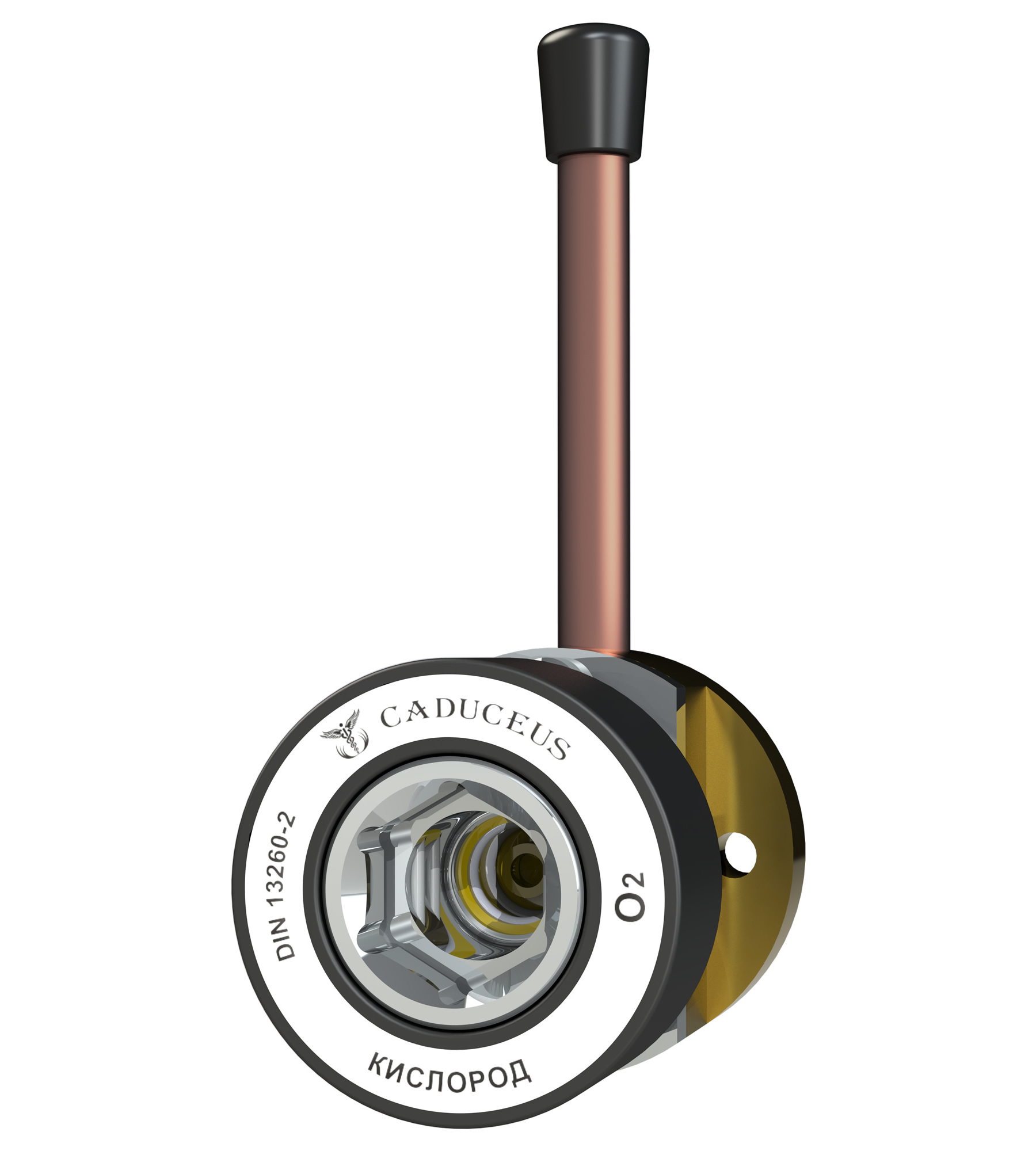

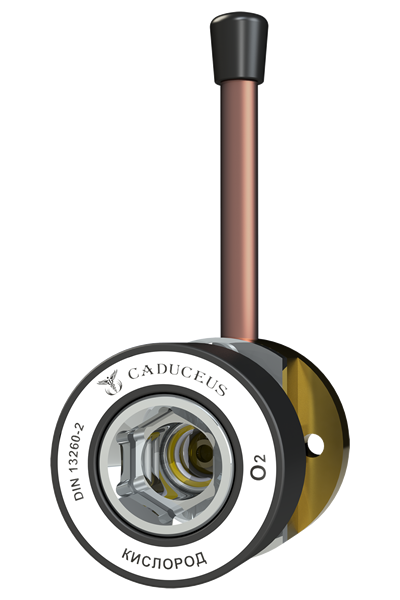

DIN 13260-2 | O2 |
white |

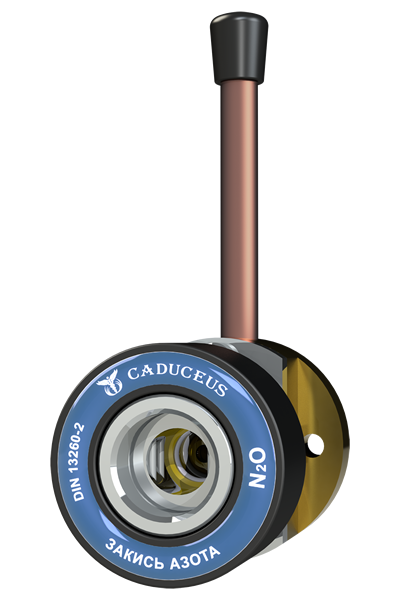

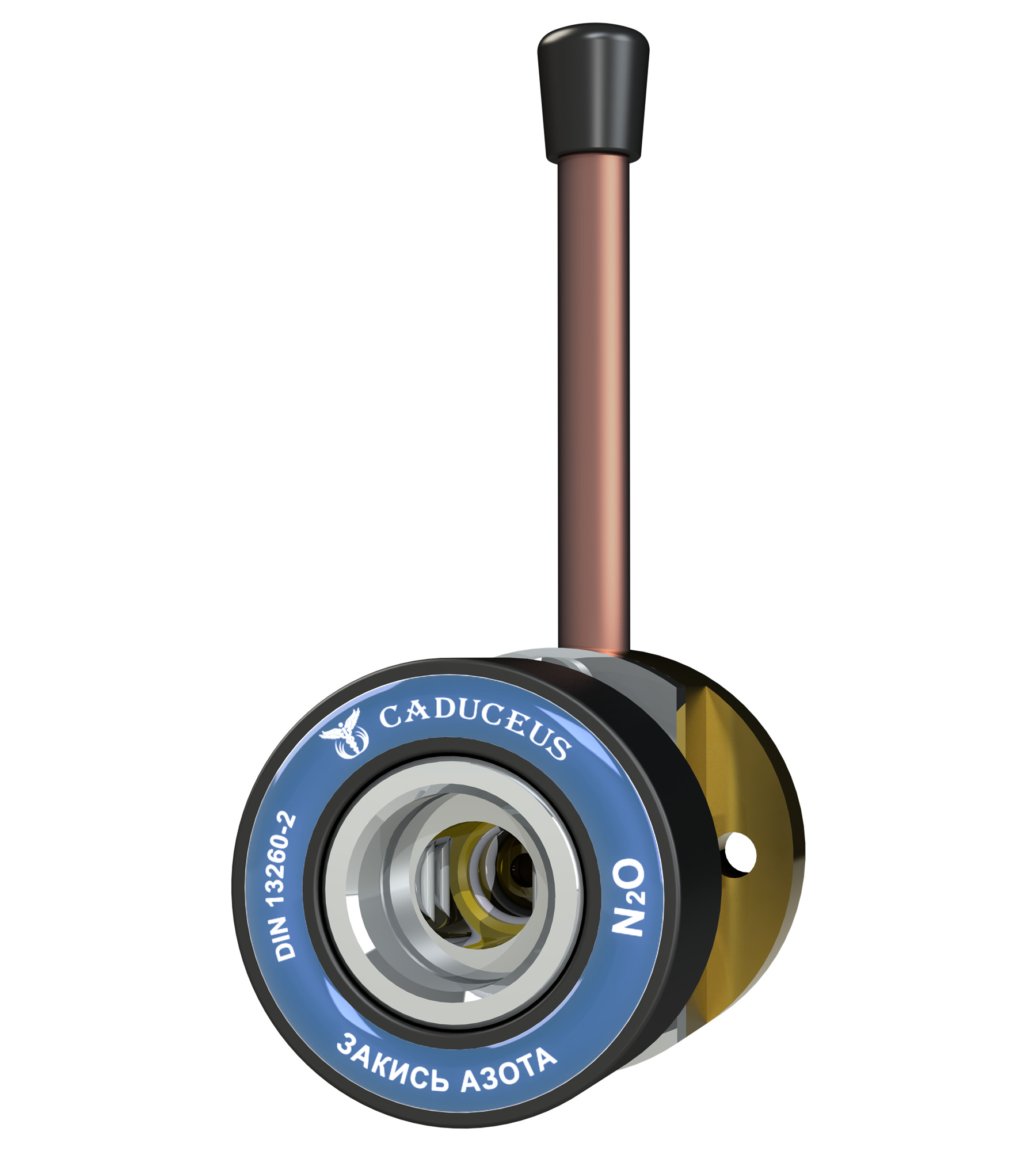

DIN 13260-2 | N2O |
blue alarm |

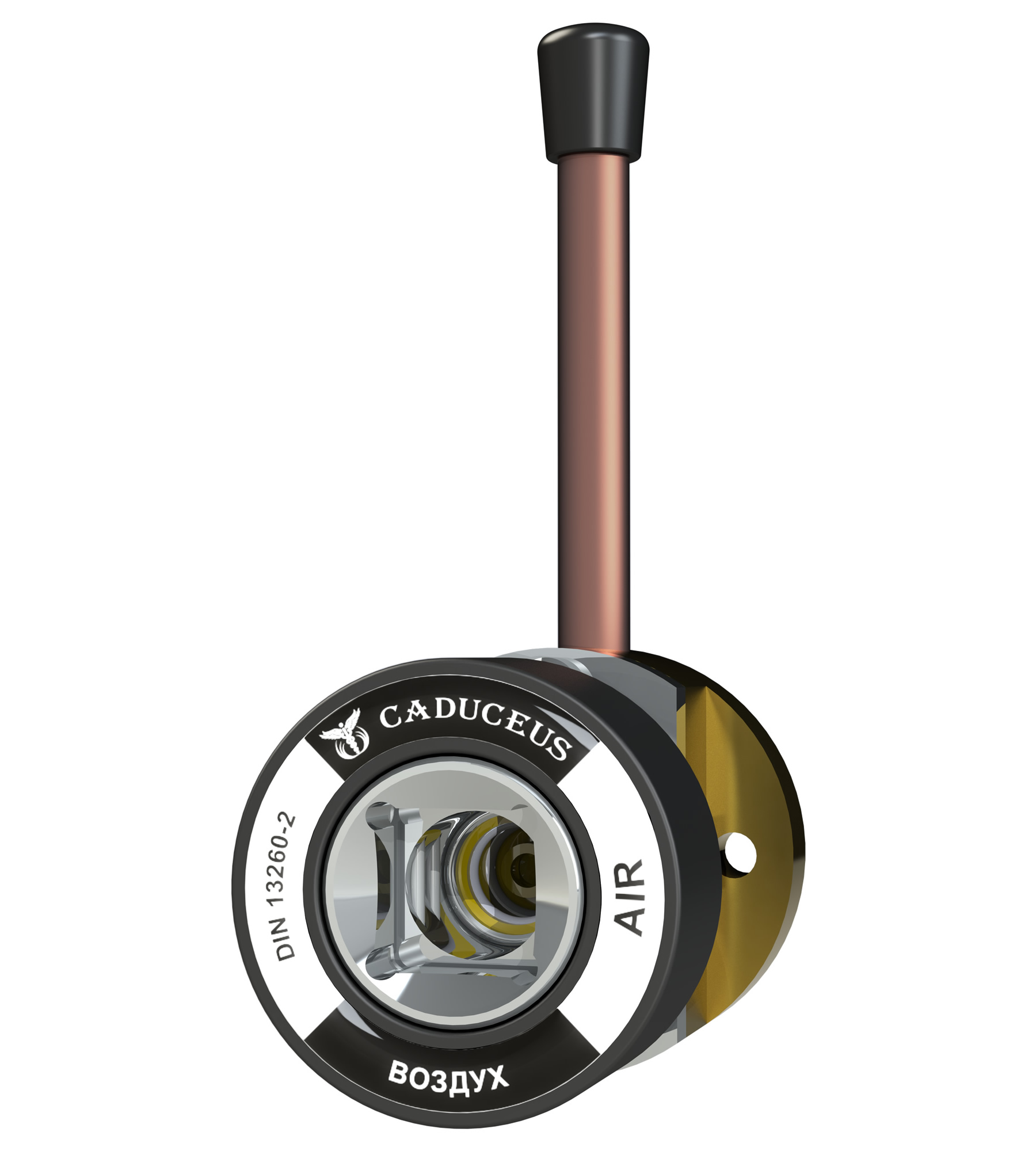

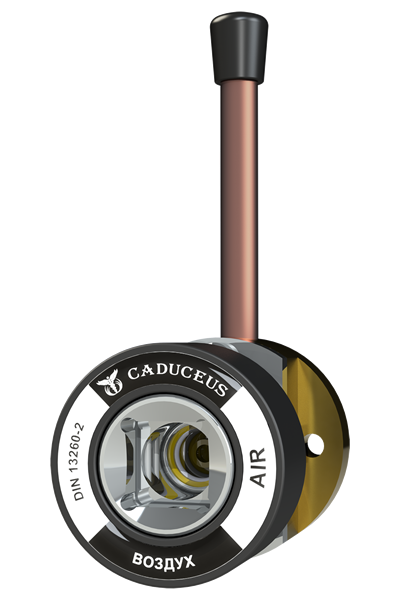

DIN 13260-2 | Air |
black + white |
DIN 13260-2 | Vacuum |
yellow + black |

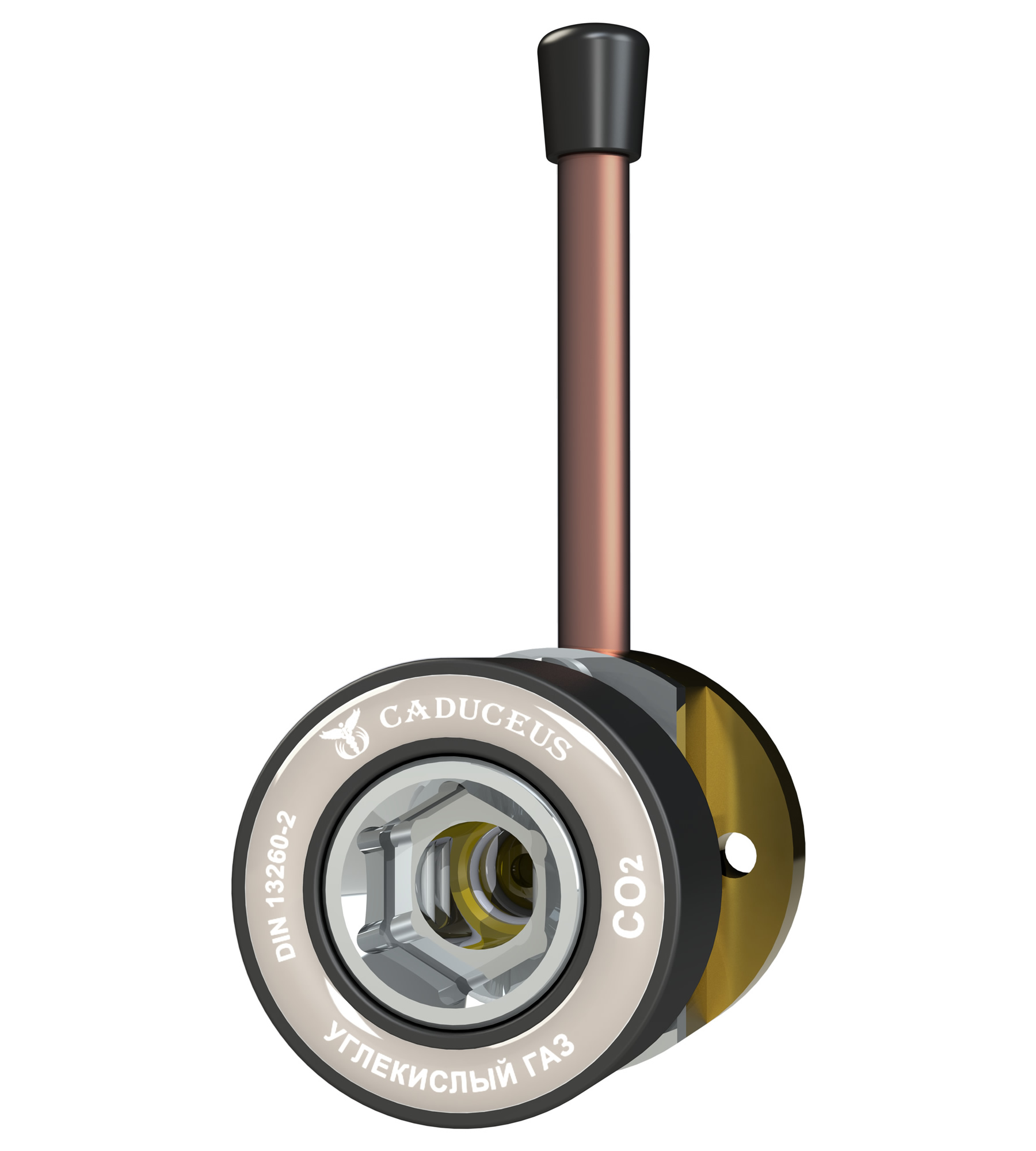

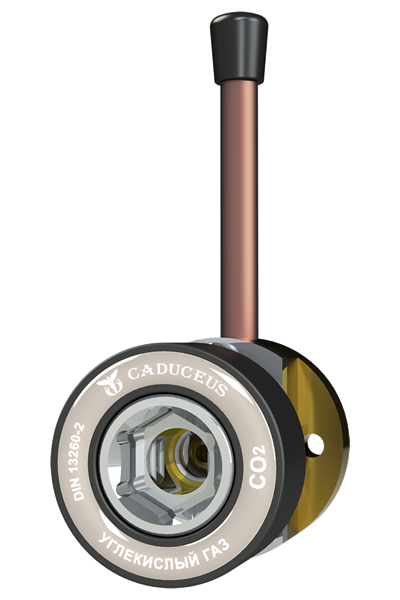

DIN 13260-2 | CO2 |
gray |
