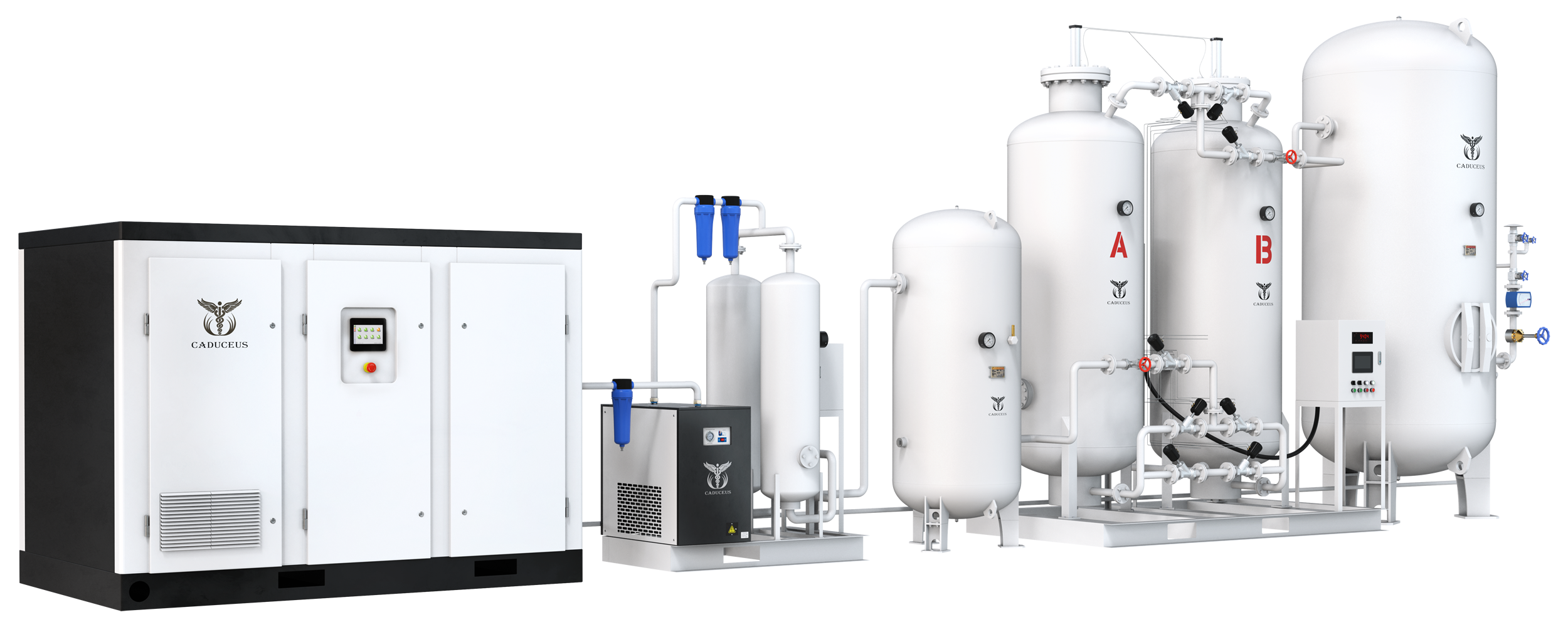

Oxygen generators CADUCEUS OXYCAD

are high-performance adsorption complexes for the oxygen-enriched air production with an oxygen concentration of 93-95%. Receiver allows to smooth out pressure fluctuations in the gas pipeline and form an oxygen reserve. The control unit ensures the autonomy of the system, and the intuitive interface of the control panel allows you to monitor oxygen quality and automatically record indicators, which makes using the installation simple, convenient and safe.

Advantages:

High performance

Stable vacuum level

Duplex Filtration System

Air cooling and forced lubrication system

Long service life

Maintanance without interruption of work

CADUCEUS control system

Specifications

Parameters	ОС 3	ОС 5	ОС 10	ОС 15	ОС 20	ОС 25	ОС 30	ОС 40	ОС 50	ОС 60	ОС 70	ОС 80	ОС 90	ОС 100	ОС 150	ОС 200
Oxygen capacity, m³/h, not less than	3	5	10	15	20	25	30	40	50	60	70	80	90	100	150	200
Pressure of oxygen at the outlet, bar	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5	4.5-5.5
Air Delivery for oxygen generator, Nm³/min	40	70	130	200	260	320	380	510	640	770	1000	1000	1300	1300	1900	2500
Pressure of oxygen at the reciever, MPa	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10	10
Power Supply, V/ Hz/ kW	380/ 50/ 7,5	380/ 50/ 7,5	380/ 50/ 15	380/ 50/ 22	380/ 50/ 30	380/ 50/ 37	380/ 50/ 45	380/ 50/ 55	380/ 50/ 750	380/ 50/ 90	380/ 50/ 110	380/ 50/ 110	380/ 50/ 132	380/ 50/ 132	380/ 50/ 220	380/ 50/ 250

Parameters	ОС 0,2	ОС 0,3	ОС 0,4	ОС 0,6
Oxygen capacity, m3/h, not less than	0,18	0,3	0,42	0,6
Pressure of oxygen at the outlet, bar	2-5	2-5	2-5	2-5
Noise level, no more than, dB	55	55	55	55
Power characteristics, V/Hz	220/50	220/50	220/50	220/50
