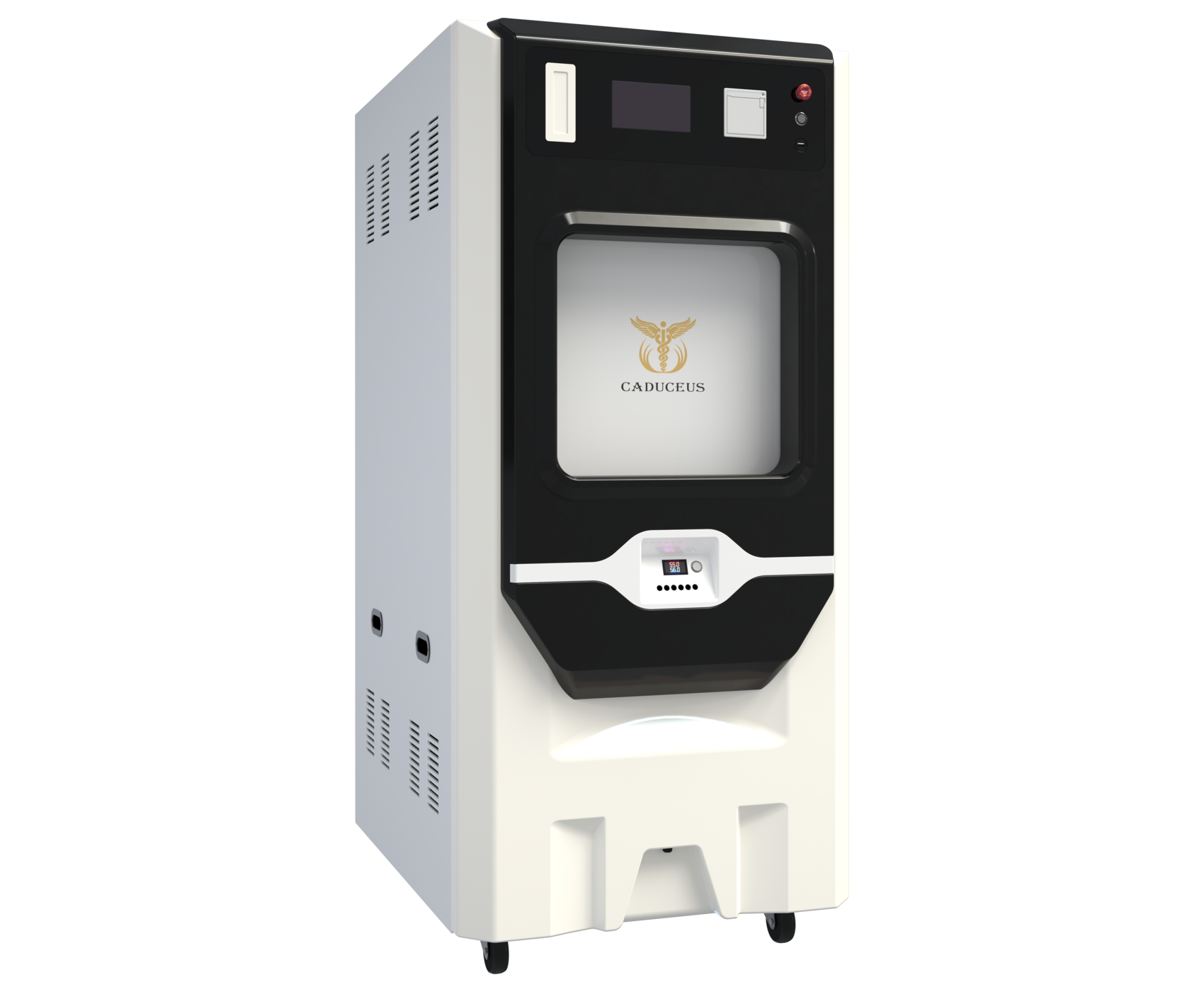

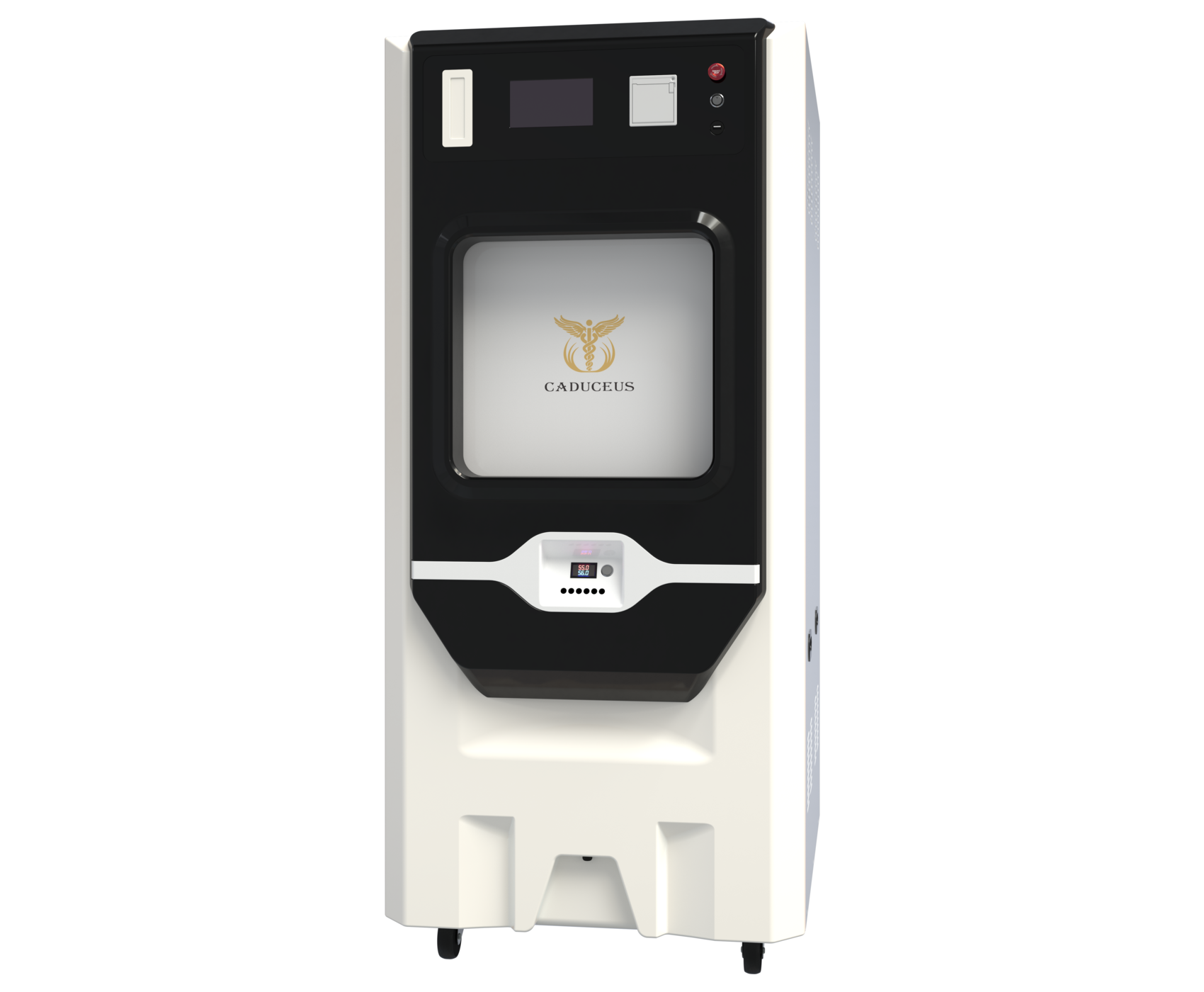

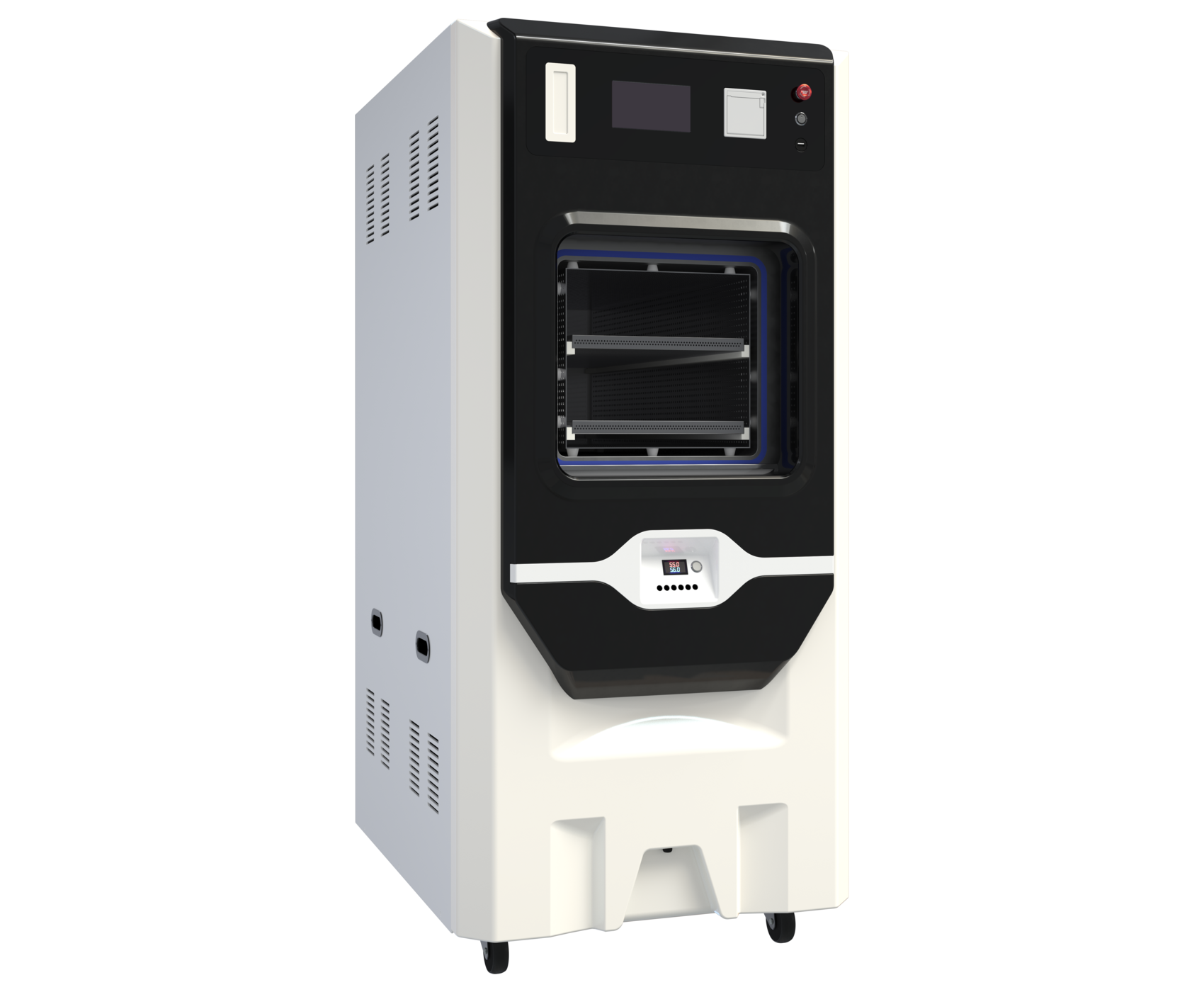

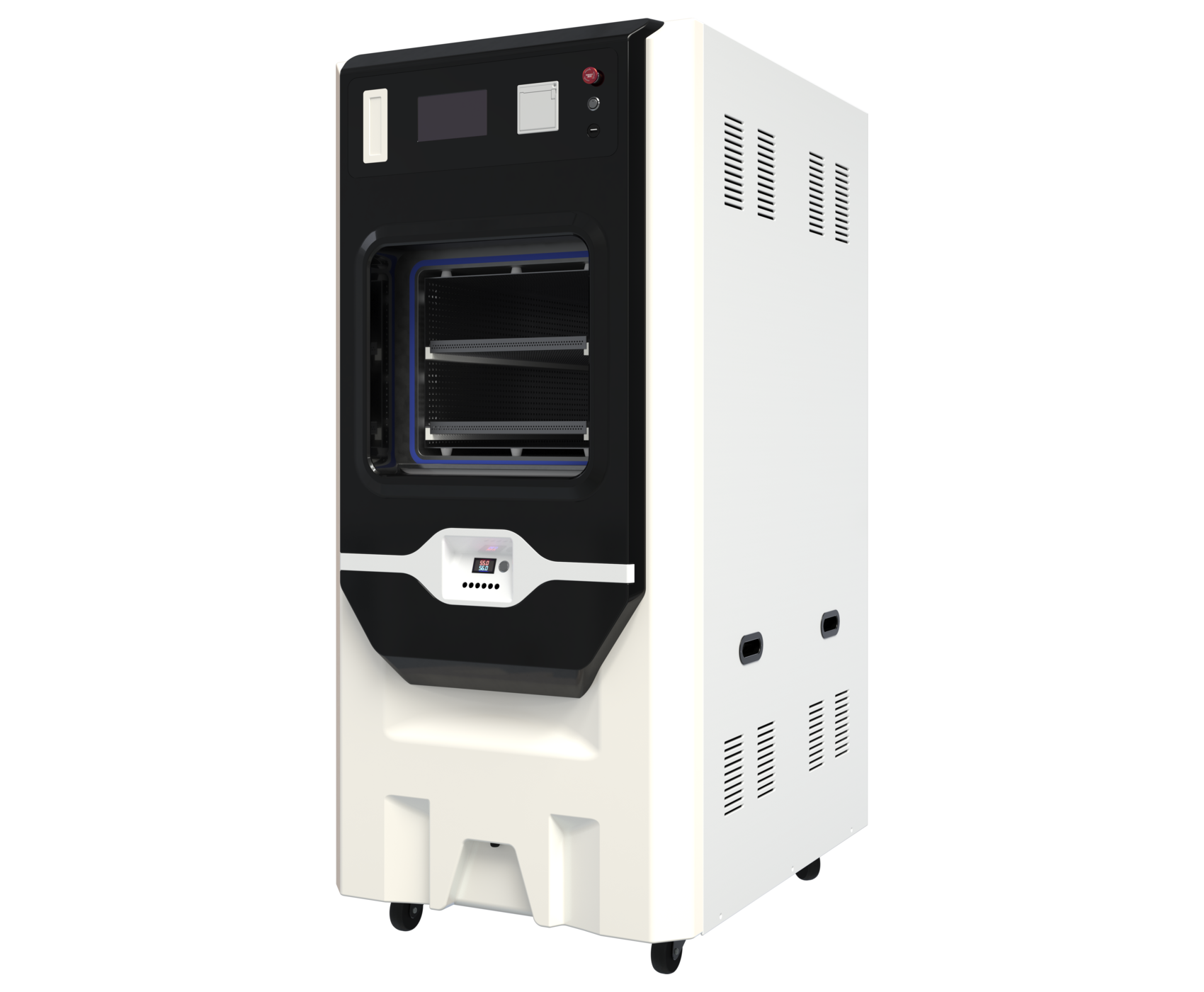

The device features small dimensions and a thoughtful design, which allows it to be integrated into small operating rooms, dentistry offices, and specialized laboratories. Despite its compact size, the CADUCEUS REFINE 100 sterilizer is capable of processing significant volumes of instruments, offering both high performance and ease of operation.
The use of the CADUCEUS REFINE 100 plasma sterilizer covers a wide range of medical instruments and equipment, such as surgical instruments, rigid and flexible endoscopes, catheters, ophthalmic and dental equipment, instruments for minimally invasive surgery, and other complex devices. Due to the gentle temperature regime, the materials — stainless steel, titanium, plastic, glass, and electronic parts — are preserved.
Specifications
| Chamber volume | 108 L |
| Recommended load | 83 L |
| Chamber dimensions (L×W×H) | 700 × 430 × 360 mm |
| Overall dimensions | 1105 × 790 × 1765 mm |
| Operating temperature | 50°C |
| Sterilization cycle | ≈1 hour |
| Sterilizing agent | 60% H₂O₂ |
| Foot pedal control | No |
| Noise level | <70 dB |
| Power supply | 220 V, 50 Hz, 3.5 kVA |
Documents
You can request additional information about the equipment, as well as find out the cost and place an order by writing to us at info@westmedgroup.ru
