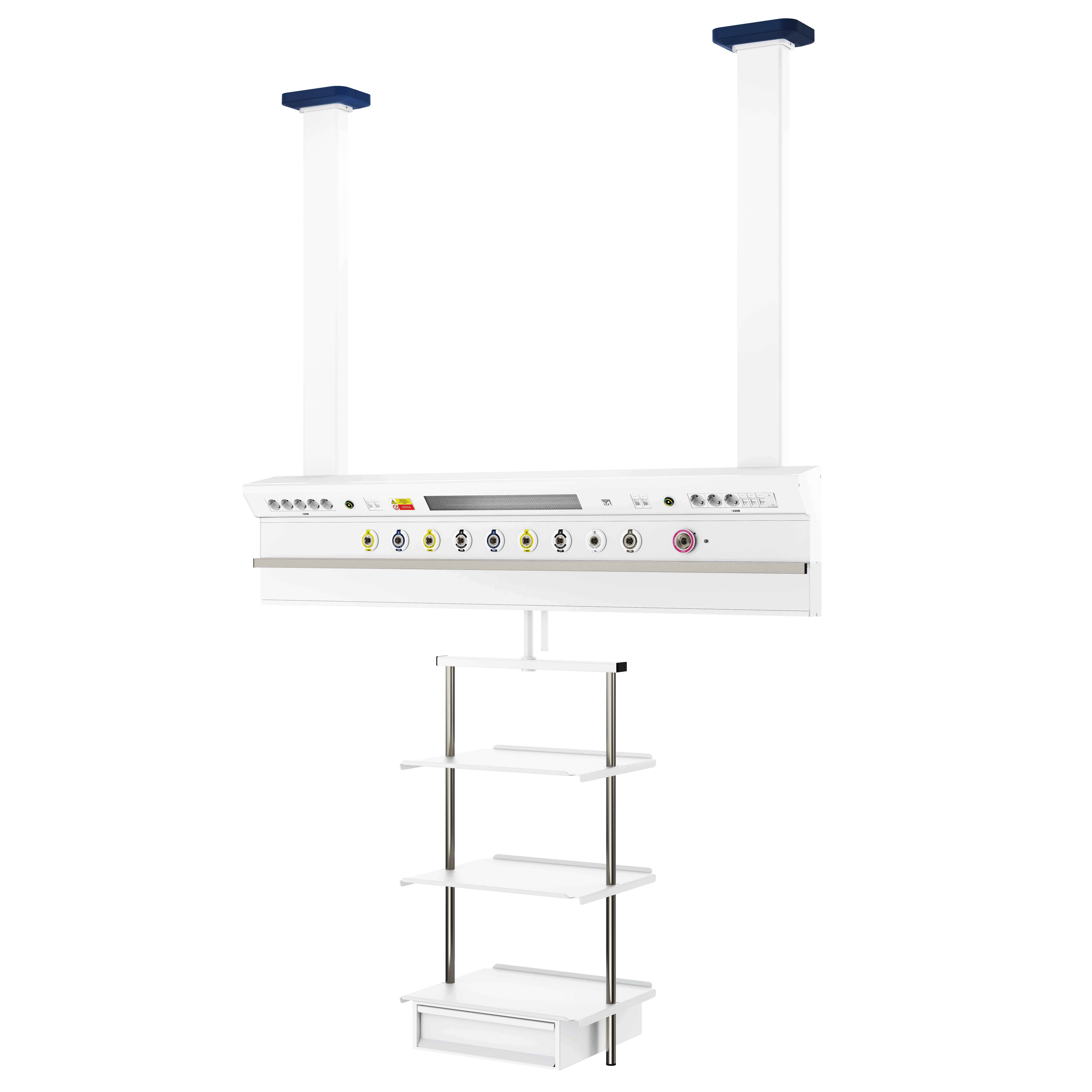

If necessary, rotating mechanisms with a profile for shelves can be fixed on vertical supports. The ceiling medical console CADUCEUS is the ideal solution for emergency rooms and intensive care units. The system is equipped with low-current sockets for data transmission, electrical sockets and quick connectors of medical gases and vacuum of universal compatibility with all types of medical equipment. The configuration of this console includes ground connectors (technological and functional). The console is equipped with direct, indirect lighting fixtures in a horizontal cabinet and night lighting in the lower part of the vertical profile. To ensure the possibility of mounting attachments CADUCEUS CBN2 is equipped with rods and rails.
The sources cabinet of medical gases, power supply and lighting can be equipped with shelves with a maximum load of 25 kg per shelf, while the shelves can be equipped with drawers and / or medical rails.
The CADUCEUS CBN2 ceiling console is made of aluminum with a polyester powder coating. The body is easy to clean, hygienic and completely safe.
The primary color used in ceiling consoles is white (RAL 9016). At the request of the customer, any other colors can be used.
CADUCEUS CBN2 medical consoles are manufactured by WestMedGroup Ltd. in Russia and meet the requirements of: GOST R 50444-92, GOST R IEC 60601-1-2010.
Specifications
| Number of rotary shoulders, pc. | 2 |
| Number of rotary-lift shoulders, pcs. | - |
| Cabinet rotation angle for gas sources around its axis, degrees, not less | 360 |
| Shoulder angle of rotation, deg., not less | 360 |
| Electric sockets, pcs, no more | 20 |
| Outlets RJ-45, pcs, no more | 16 |
| Grounding outlets, pcs, no more | 30 |
| Quick connectors of medical gases, pcs., no more | 16 |
| Medical rail for mounting of accessories, pcs., no more | 1 |
| Number of shelves, pcs., no more | 6 |
| Number of rods, pcs., no more | 4 |
| Lighting | + |
