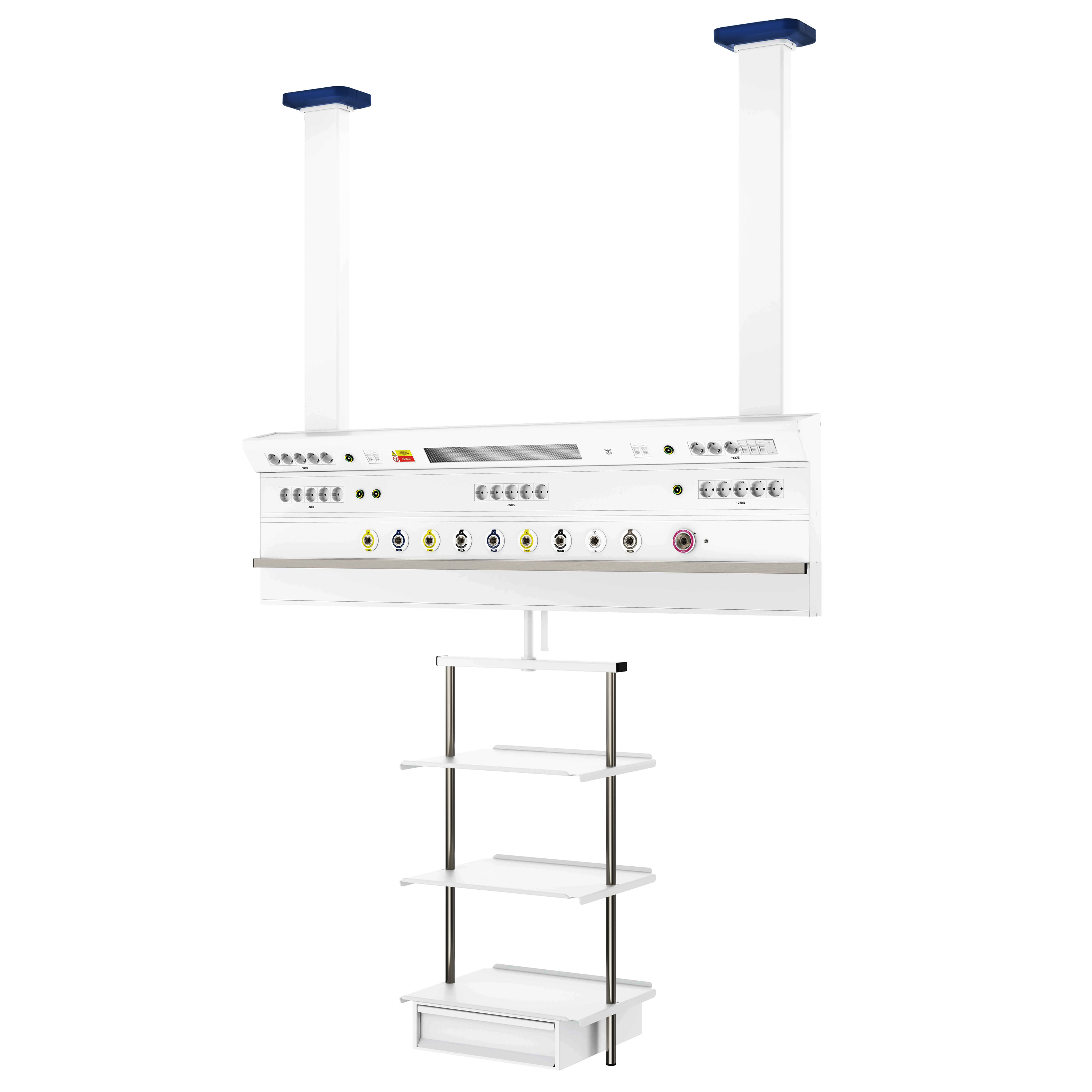

If necessary, rotating support mechanisms with a profile for fastening shelves can be fixed on vertical supports. The suspension system is equipped with low-current sockets for data transmission, electrical sockets and connectors for quick connection of medical gases and vacuum, which allows you to quickly connect to the gas line and connect the necessary devices due to the universal compatibility of gas connectors with all types of medical equipment. The configuration of this console includes ground connectors (technological and functional). For the convenience of patients and staff, the console is equipped with direct, indirect lighting fixtures in a horizontal cabinet and night lighting in the lower part of the vertical profile. Also, CADUCEUS CBN4 is equipped with rods and rails.
The sources cabinet can be equipped with shelves of various modifications, while the shelves can be equipped with drawers and / or medical rails.
The ceiling console CADUCEUS CBN4 is made of aluminum with a polyester powder coating. The design is easy to clean, hygienic and completely safe.
The primary color used in ceiling consoles is white (RAL 9016). At the request of the customer, any other colors can be used.
CADUCEUS CBN4 medical consoles are manufactured by WestMedGroup Ltd. in Russia and meet the requirements: GOST R 50444-92, GOST R IEC 60601-1-2010.
Specifications
| Number of rotary shoulders, pc. | 2 |
| Number of rotary-lift shoulders, pcs. | - |
| Cabinet rotation angle for gas sources around its axis, degrees, not less | 360 |
| Shoulder angle of rotation, deg., not less | 360 |
| Electric sockets, pcs, no more | 30 |
| Outlets RJ-45, pcs, no more | 20 |
| Grounding outlets, pcs, no more | 30 |
| Quick connectors of medical gases, pcs., no more | 16 |
| Medical rail for mounting of accessories, pcs., no more | 1 |
| Number of shelves, pcs., no more | 6 |
| Number of rods, pcs., no more | 4 |
| Lighting | + |
