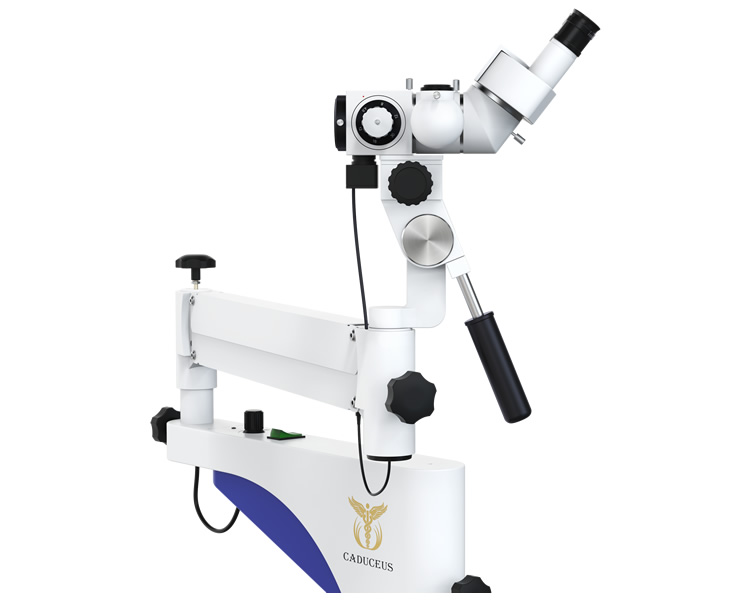

The device generates a clear image, volumetric visualization and a wide field of view due to binocular optics, an innovative lighting system and the ability to connect devices for photo-video recording.

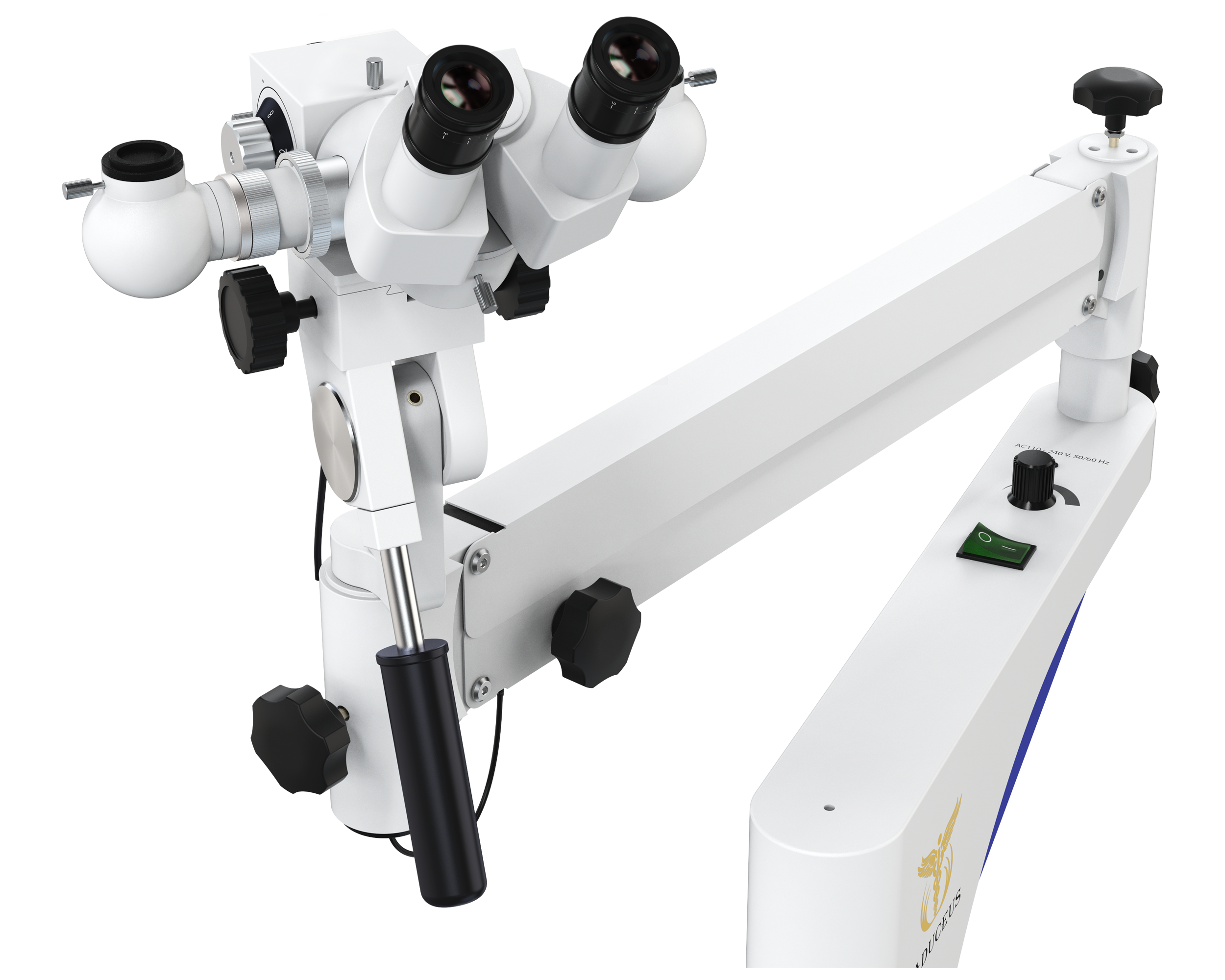

The mobility, the high degree of freedom in positioning of optical heads, the reliable fixation at the desired point and the accuracy of the settings ensure quick movement and convenience of diagnostic manipulations. The ability to adapt the eyepieces to the peculiarities of vision of different specialists and adjusting of interpupillary distance provide a comfortable working enviroment.
Specifications
| Video system | |
| Sensor | 1/4" Sony CCD |
| Resolution (Native/Effective) | 8 MP (Native), 0.8 MP Effective |
| Horizontal Resolution | ≥ 1000 TV Lines |
| Image Size | Not less than 1920×1080 pixels (Full HD) |
| Zoom | 18× Optical / 1–60× Continuous Zoom Range (Patent) |
| Focusing | Manual (Near/Far), Effective in Manual Mode |
| Color Reproduction | Max. Error ≤ 60 NBS, Average Error ≤ 30 NBS |
| Illumination | |
| Light Source | 24 Groups of White LEDs + 60 LEDs (Additional) |
| Illuminance | ≥ 1200 Lux |
| Color Temperature | 3200–7000 K |
| Spot Diameter (at 30 cm) | ≥ Ø80 mm |
| Uniformity of Illuminance (Coefficient) | ≤ 1.2 |
| Heating (Temperature Rise in 20 min) | ≤ 1°C |
| Illumination Modes | 2 Rings White / 1 White + 1 Green Ring |
| Brightness Adjustment | 6 Levels (L1–L6), Last Setting Memory Function |
| Optical/Operating Parameters | |
| Working Distance (at 3×) | 230–350 mm |
| Working Distance (at Max. Magnification) | 300–500 mm |
| Field of View (at 3×) | ≥ Ø60 mm |
| Field of View (at Max. Magnification) | ≥ Ø6 mm |
| Depth of Field (at 8×) | ≥ 40 mm |
| Depth of Field (at 16×) | ≥ 5 mm |
| System Horizontal Resolution | ≥ 900 TV Lines |
| Thermal Radiation (Max. Intensity) | ≤ 350 W/m² |
| Operational Parameters | |
| Operating Conditions (Temperature) | from +5°C to +40°C |
| Relative Humidity | ≤ 80% (Non-Condensing) |
| Atmospheric Pressure (Operation) | 700–1060 hPa |
| Storage/Transport Conditions (Temperature) | from –40°C to +55°C |
| Electrical Safety Class | I |
| Protection Rating (IP) | Device: IPX0; Foot Pedal: IPX1 |
| Fuse | Yes |
| Software | |
| Software Functions | Image/Video Capture, Freeze Frame, Viewing, Analysis, Reporting, Patient Database |
| Acetic Acid Test Timer | Auto-Capture Every 2 sec., On-Screen Timer 00:00–03:00 |
| Scale Control | Default 10×, Hold for Stepwise Adjustment 1–60× |
| Lesion Assessment | Assessment System Based on Borders, Area, Contour, Color, Vessel Morphology |
| Dimensions and weight | |
| Video Camera | 100×200×210 mm, 1 kg |
| USB Device | 35×20×100 mm, 0.080 kg |
| Direct Video Signal Monitor | 510×45×300 mm, 1.200 kg |
| Work Desk | 550×15220×600 mm, 18.650 kg |
| Stand | 430×1200×550 mm, 2.800 kg |
| Laptop (Optional) | 310×25×230 mm, 1.400 kg |
| Safety and Certification | |
| Certification | Colposcopy Patent (Type II Lenses) |
| Data Protection | Rutoken S 64KB Access Key |
*Specifications are subject to change without notice.
