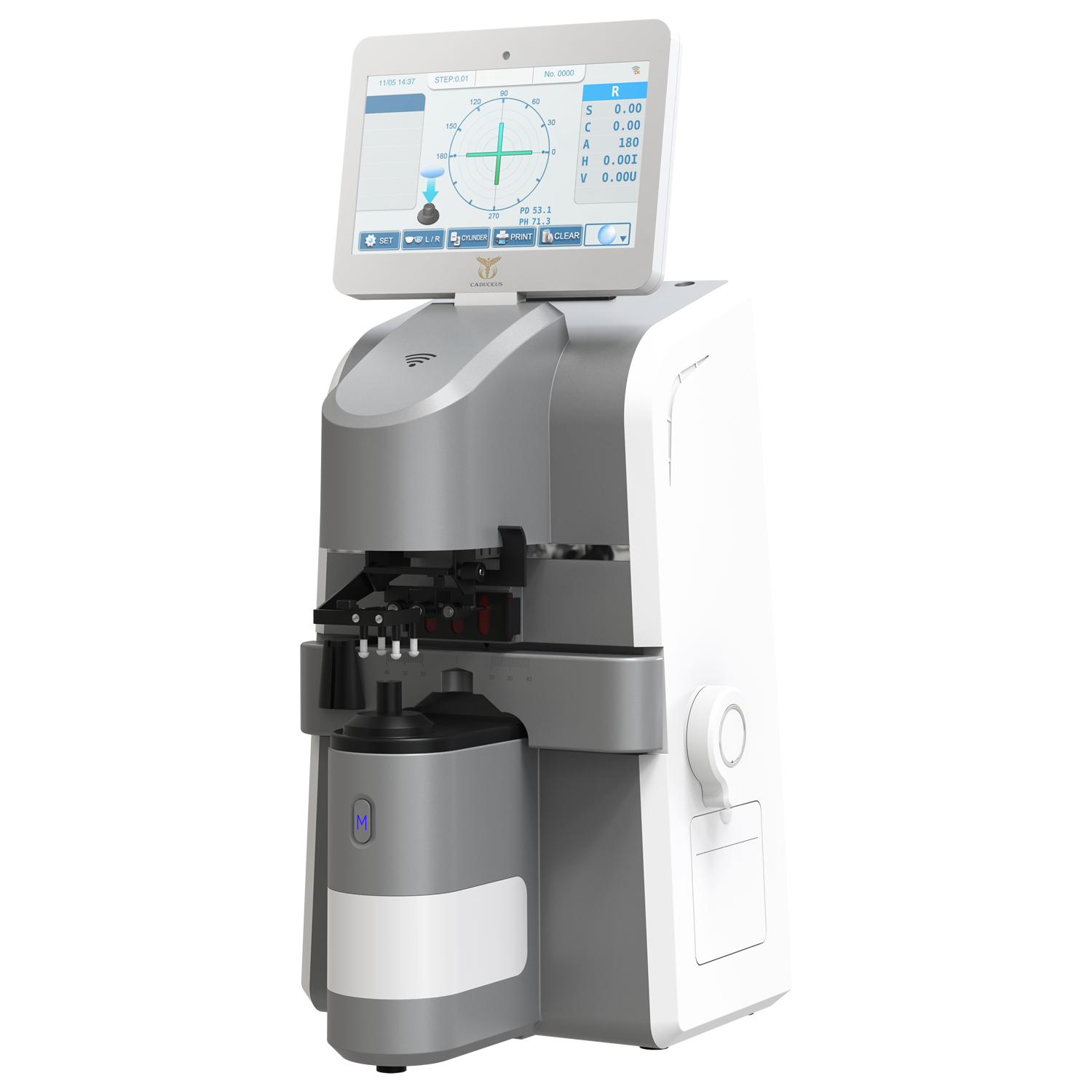

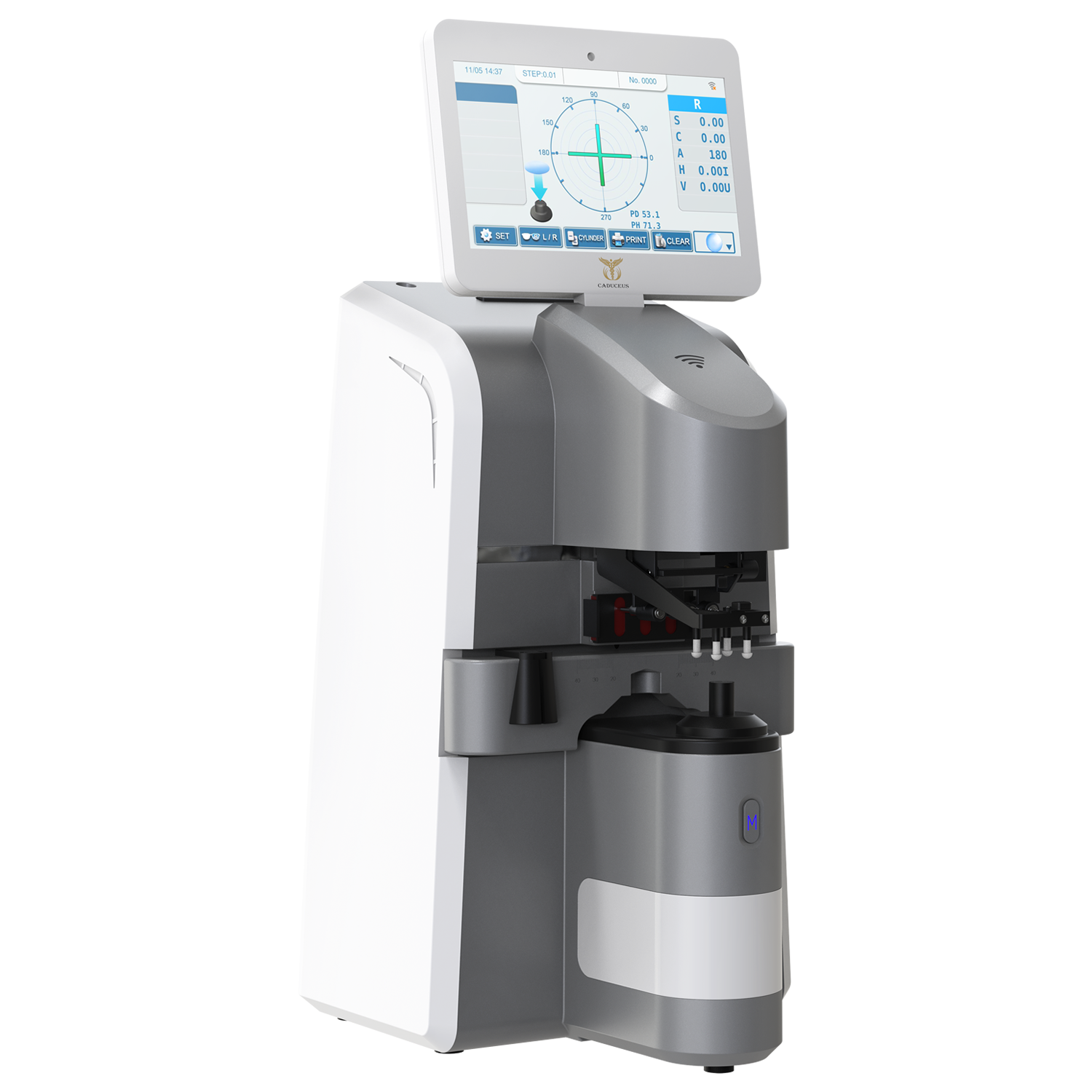

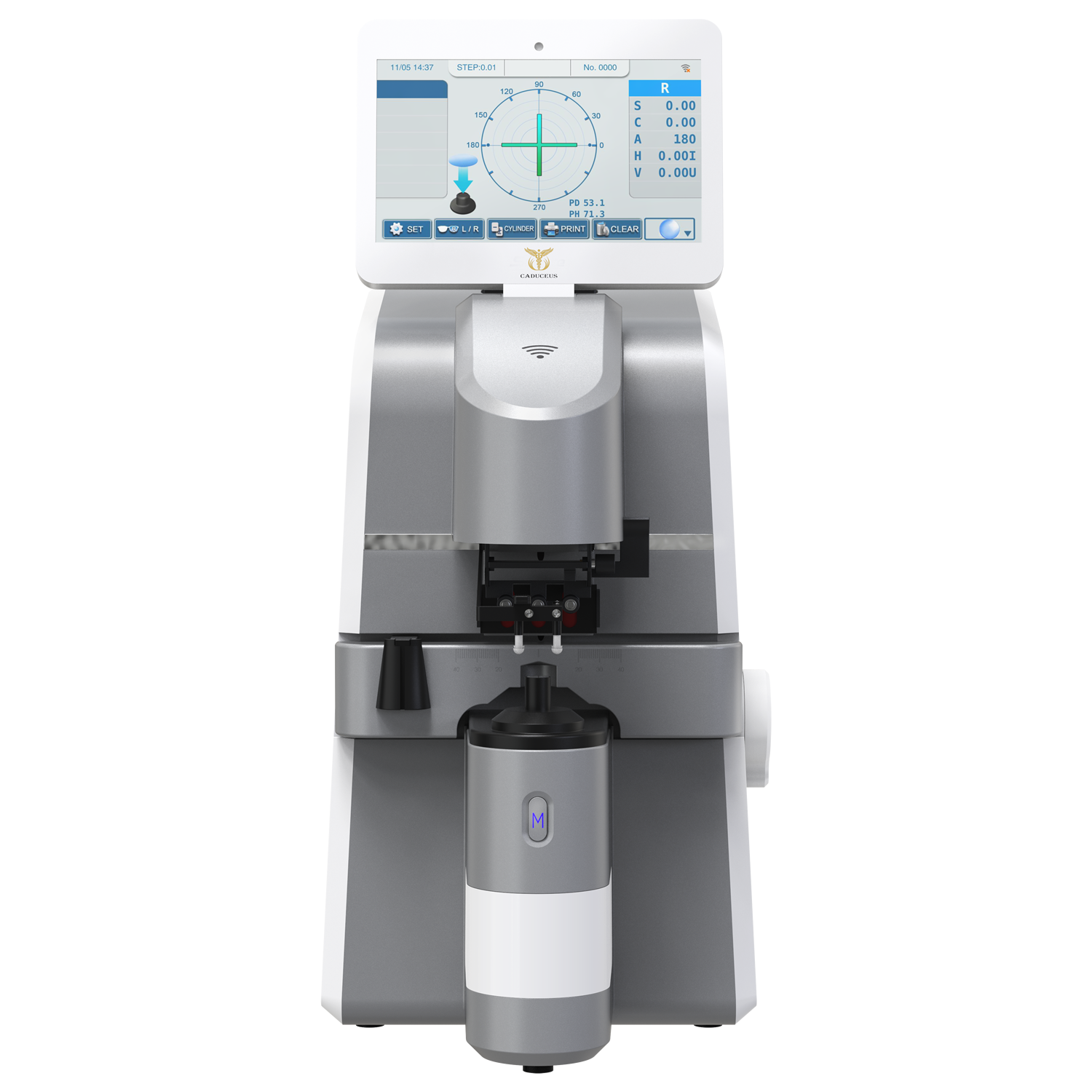

A centered telescopic optical system with automatic lens type detection and measurement, equipped with an LCD display with a convenient interface and the ability to output information to external media, makes the measurement process faster and more ergonomic. The automatic device captures values that are inaccessible to manual measurement, eliminates errors and analyzes characteristics in an exceptionally short time, greatly facilitating the entire workflow.
Can be used in:
Specifications
Measurement range:
| Sphere | -25,00 ~ + 25,00D (step 0,01 / 0,12 / 0,25D) |
| Cylinder | -10,00 ~ + 10,00D (step 0,01 / 0,12 / 0,25D) |
| Cylinder axis | 0 ° ~ 180 ° |
| Additional optical power | -10,00 ~ + 10,00D (step 0,01 / 0,12 / 0,25D) |
| Prizm | 0,00 ~ 15,00 (step 0,01) |
| Method of measurement | Hartmann gauge |
| UV transmission measurement | yes |
| Blue light transmission measurement | yes |
| Lens diameter | 15mm ~ 100mm |
Technical specifications:
| Display | 7 inches, TFT |
| Printer | Hight speed thermal printer |
| Digital connector | USB |
| Power | AC (100 V~ 240 V); 50 / 60Hz |
| Energy consumption | 30 W |
| Overall dimensions | 255mm×212mm×473mm |
| Weight | 5.1 kg |
* Specifications are subject to change without notice
Documents
You can request additional information about the equipment, as well as find out the cost and place an order by writing to us at info@westmedgroup.ru
